TMS measurement systems—calibrated, portable units—are used in laboratories, plants, and machines to measure tensile and compressive forces. Battery operation allows for self-contained use on-site at the measurement location. The force measurement systems come standard in a carrying case and with a calibration certificate. Unpack—turn on—measure. The plug-and-play solution for occasional measurement and verification of forces and loads.

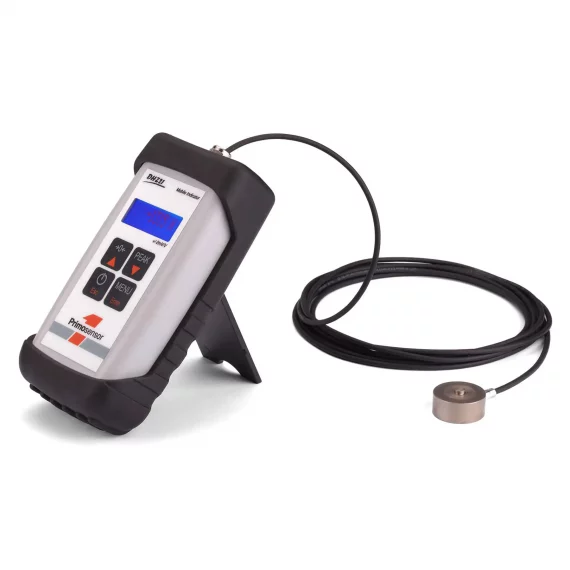

The Test & Measurement force measuring system TMS1 as a calibrated measuring unit is suitable for measuring and displaying pressure forces in laboratories, machines and plants. Due to the very compact design of the force transducer MMD, forces up to 5 kN can be measured reliably even in confined spaces. The display unit DHZ21, which is permanently connected to the force transducer by cable, supplies the force transducer with energy and displays the applied force directly in N or kN.

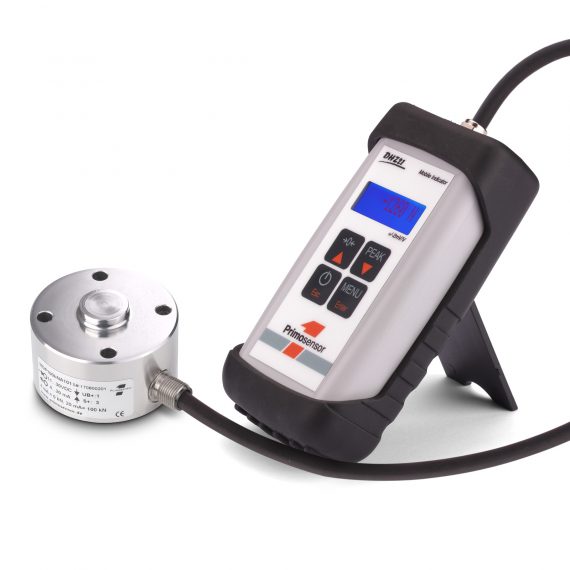

The Test & Measurement force measuring system TMS2 as a calibrated measuring unit is suitable for measuring and displaying medium to high compression forces in laboratories, machines and plants. Due to the compact design of the force transducer MDP, forces up to 100 kN can be measured reliably even in confined spaces. Due to the compact design of the force transducer MDP, forces up to 100 kN can be measured reliably even in confined spaces. The display unit DHZ21, which is permanently connected to the force transducer by cable, supplies the force transducer with energy and displays the applied force directly in N or kN.

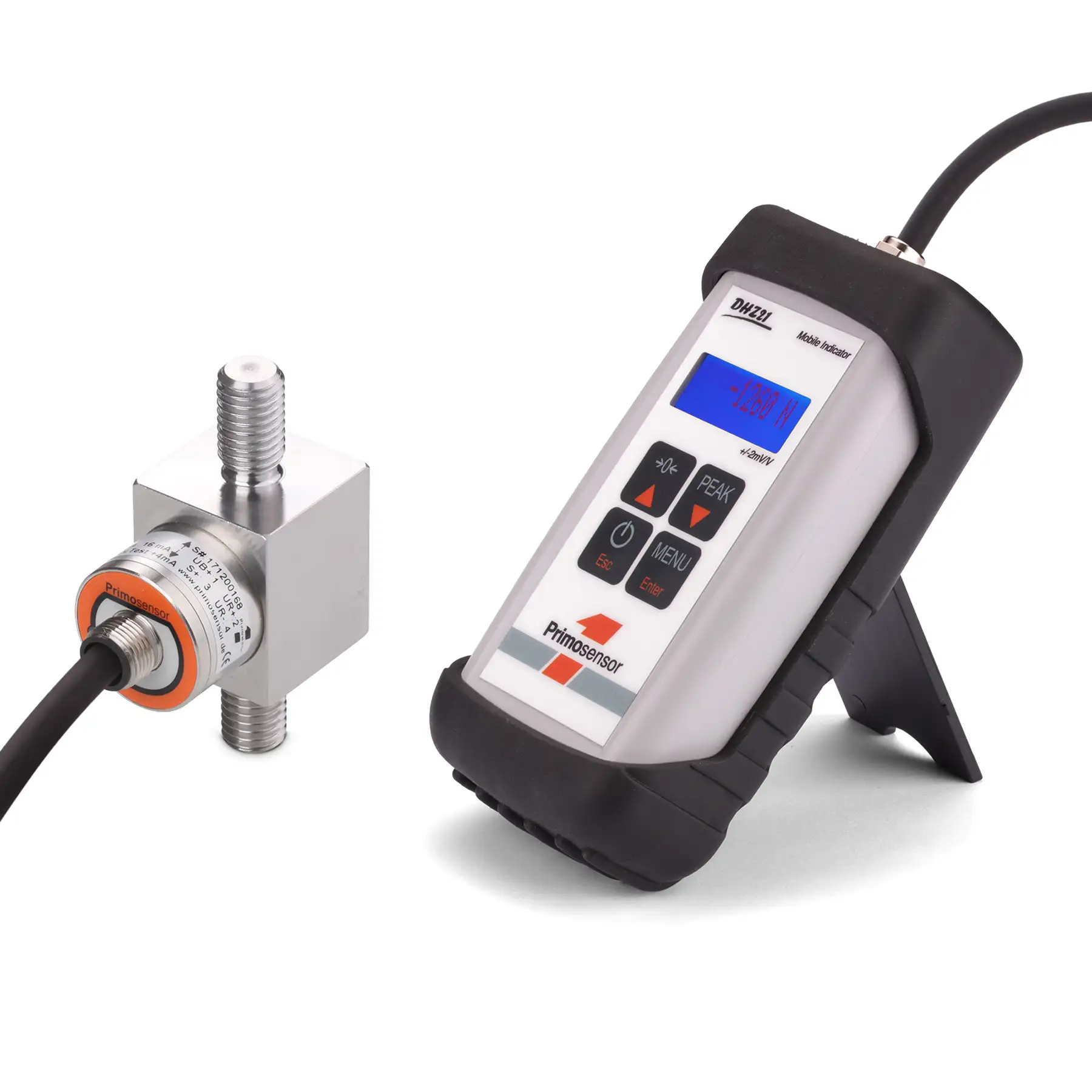

The Test & Measurement force measuring system TMS4 as a calibrated measuring unit is suitable for measuring and displaying tension and compression forces in laboratories, machines and plants. Due to the compact design of the force transducer ZDA, tension and compression forces up to 50 kN can be measured reliably even in confined spaces. The mobile handheld display unit DHZ21, which is permanently connected to the force transducer by cable, supplies the force transducer with energy and displays the applied force directly in N or kN.

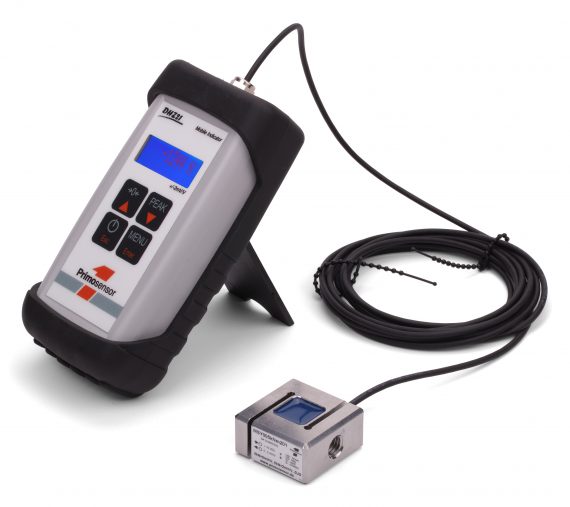

The Test & Measurement force measuring system TMS4 as a calibrated measuring unit is suitable for measuring and displaying tension and compression forces in laboratories, machines and plants. Due to the very compact design of the miniature force transducer MSY, tension and compression forces up to 5 kN can be measured reliably even in confined spaces. The mobile handheld display unit DHZ21, which is permanently connected to the force transducer by cable, supplies the force transducer with energy and displays the applied force directly in N or kN.

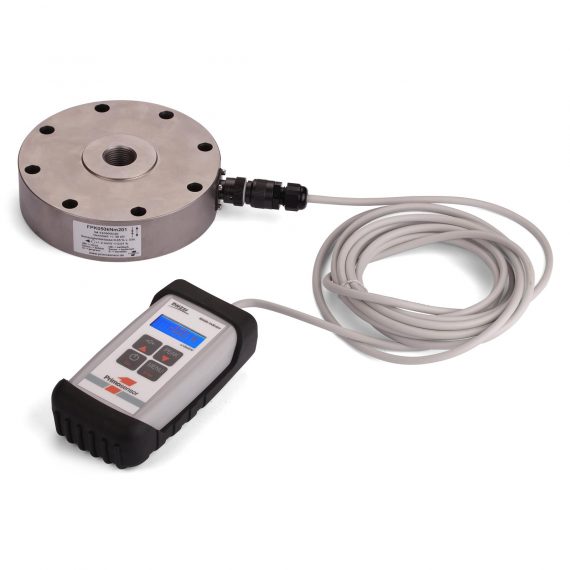

The Test & Measurement force measuring system TMS5 as a calibrated measuring unit is suitable for measuring and displaying tension and compression forces in laboratories, machines and plants. Due to the very compact design of the flat profile (pancake) force transducer FPK, tension and compression forces up to 500 kN can be measured reliably even in confined spaces. The mobile handheld display unit DHZ21, which is permanently connected to the force transducer by cable, supplies the force transducer with energy and displays the applied force directly in N or kN.

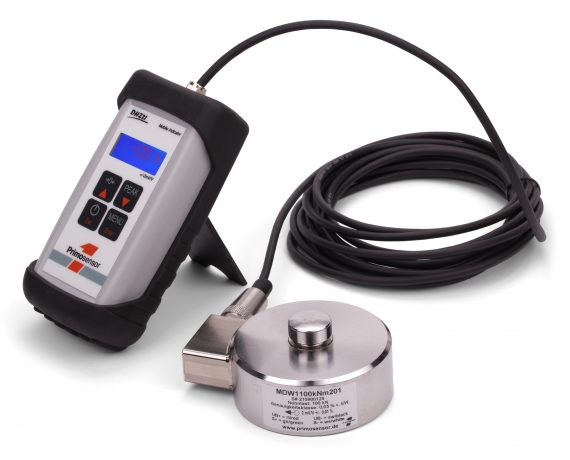

The Test & Measurement force measuring system TMS6 as a calibrated measuring unit is suitable for measuring and displaying medium to high compression forces in laboratories, machines and plants. Due to the compact design of the force transducer MDW, forces up to 350 kN can be measured reliably even in confined spaces. The display unit DHZ21, which is permanently connected to the force transducer by cable, supplies the force transducer with energy and displays the applied force directly in N or kN.
These force transducers are characterised by their small sizes which makes them perfect for installation in narrow spaces. They need only a flat surface as a base. Force is introduced via a convex area in the centre that does not mind minor tilting. Fixing holes (only for type 1) on the underside provide secure fixing in the application.
TMS force measurement systems are calibrated, portable measuring units designed to measure tensile and compressive forces. They are battery-powered, enabling self-contained operation directly at the measurement site. The systems are delivered ready for use in a carrying case, including a calibration certificate, and can be used immediately without any complicated installation (“Unpack – turn on – measure”). Depending on the model, variants are available for different force ranges as well as for compression-only or combined tension/compression measurements.
Mobile force measurement systems are used wherever forces need to be measured or verified quickly, reliably, and flexibly. Typical applications include:
Thanks to their portability, immediate operational readiness, and reproducible measurement results, these systems are particularly well-suited for measurement tasks that do not require a permanent installation and involve minimal preparation.
In addition to the standard models, our force measurement systems can be customized to meet your specific requirements. Whether you need different force ranges, special load cell geometries, specific mechanical interfaces, or custom features—we’ll work with you to develop a solution that’s perfectly tailored to your measurement task. This ensures you receive a force measurement system that integrates seamlessly into your application and meets your technical requirements.
Depending on the model, these force measurement systems are suitable for measuring tensile forces, compressive forces, or combined tensile and compressive forces. A variety of measurement ranges allow them to be used in a wide range of industrial and testing applications.
Yes. All systems are calibrated, come with a calibration certificate, and are shipped in a carrying case. Thanks to the plug-and-play design, you can start using the system right after unpacking it—without any complicated installation or configuration.
These systems are suitable for use in testing laboratories, manufacturing, maintenance and service work, and during the commissioning of machines and equipment. Because they are battery-powered, measurements can be taken flexibly right on site.
Yes. Upon request, we supply force measurement systems with custom force ranges, special load cell geometries, or customized mechanical and electrical designs. Together, we’ll develop a solution that’s optimally tailored to your measurement needs.
Every force measurement system is calibrated before shipment and comes with a calibration certificate. This ensures that you receive reproducible and reliable measurement results and can use the system immediately for testing and measurement tasks.
