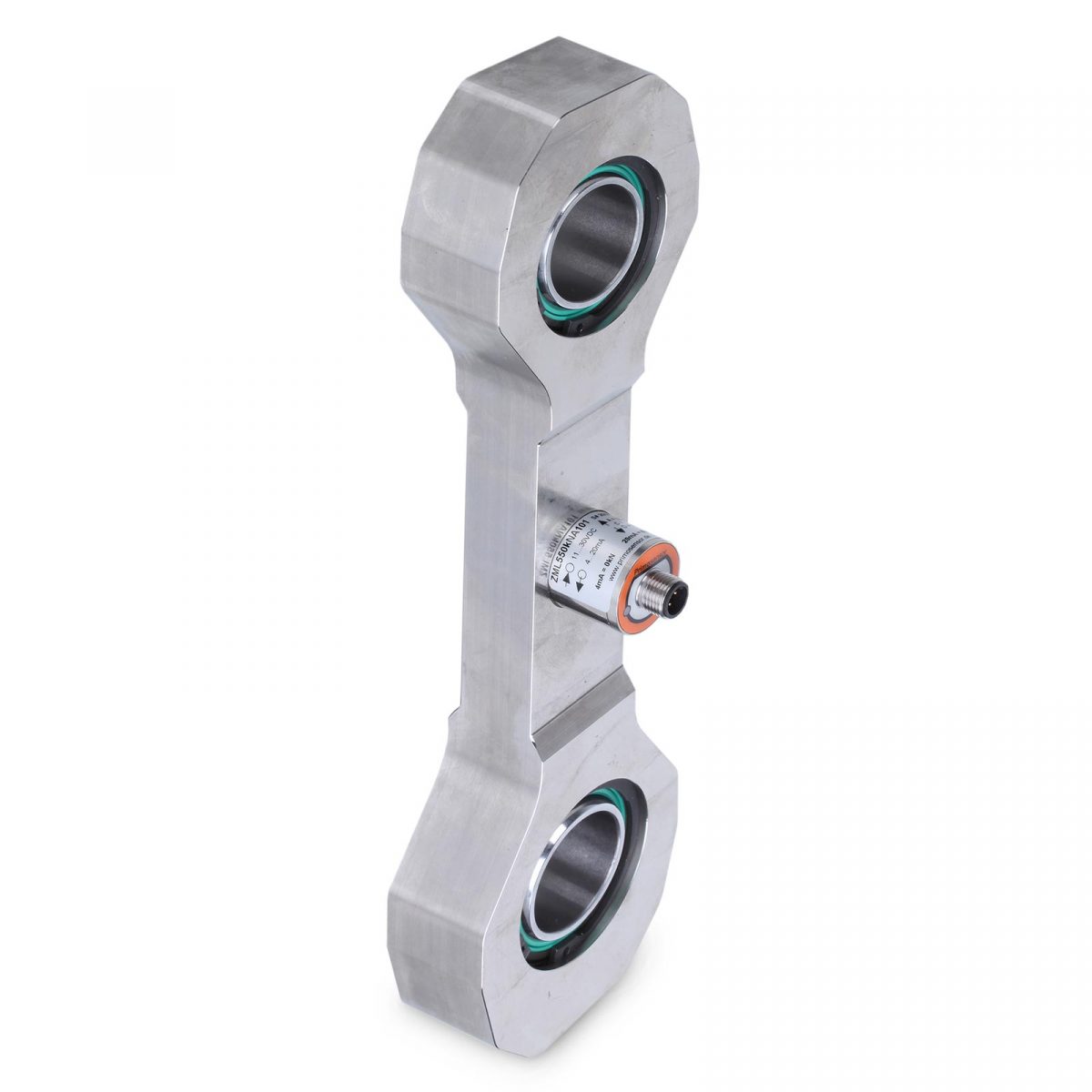

Primoforce® ZML Tension-Links

Primoforce® ZML Tension-Links

Tension Links are very robust force sensors that are mainly used in mechanical engineering applications but also frequently in cranes and hoists. The tensile forces can be introduced moment-free into the sensor via the  integrated spherical bearings over a fixed centre distance. Placed directly in the force flow and under the effect of the introduced tensile force, the sensor aligns itself optimally and thus achieves high accuracies in load measurement. The integrated amplifier electronics provide a standard current signal of 4…20 mA that is easy to evaluate, very reliable and insensitive to interference. Optionally, the Tension Link ZML is also available with a (redundant) 2-channel output signal.
Genauigkeit: 0,2 %v.E.

Download datasheet

Additional information

Weight N/A

Price range: 905,00 € through 1.110,00 €

Plus 19% VAT
plus shipping
Delivery Time: approx. 2-3 weeks*
Artikel-Nr.: ZML Categories , ,

Suitable for your product ...

  • Connection cable with socket

    Connection cable with socket

    Price range: 15,50 € through 44,00 €

    Plus 19% VAT
    plus shipping
    Delivery Time: approx. 4-5 working days *
    Select options This product has multiple variants. The options may be chosen on the product page
